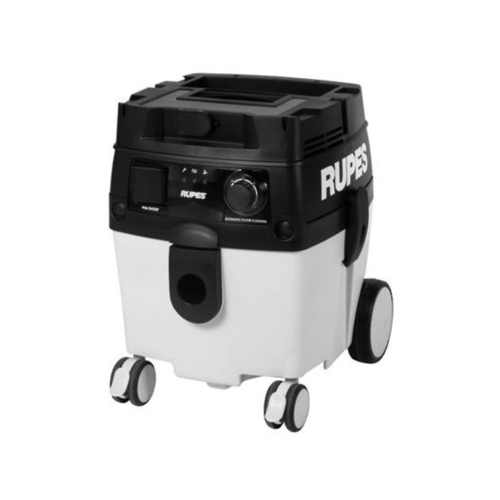

Rupes Auto Filter Clean L Class 30L Dust Extractor

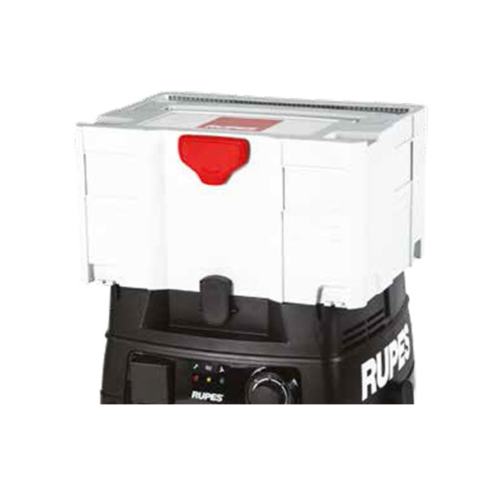

Compatible with Systainer T-Loc Systems
S2 Series vacuum cleaners are equipped with a fast connection for all the SYSTAINER T-LOC modular systems. Therefore, the system can be used as a real working station, where it is possible to store tools and related equipment.With a 1200 watt motor the RUS230EL is an extremely versatile and compact dust extraction unit, providing dust extraction for an electric tool. The operator can choose between manual or automatic mode. The automatic mode can be selected by means of the special patented electronic board for electric tools with a maximum power of 2400 Watts.
Automatic Filter Cleaning
To ensure maximum extraction efficiency under all working conditions, the S2, version E extractors have an automatic filter cleaning system (RUPES patent). By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. With this innovative system, the operator is able to continue working without any interruption of or reduction in the extraction process.
Supplied with a multipurpose swivel extraction attachment that makes it possible to use extraction hoses with diameters of 25, 29, 38 and 50 mm, making the extractor adaptable to any application. This model comes complete with a 4m hose and filter bag.
Extracted Dust Classification Rated ‘L ‘ - with a maximum tolerated exposure value > 1.0 mg/m3 (according to the EN60335-2-69/A2 standard). Suitable for fine dust, dust from mineral substances containing aluminium oxide and paint dust applications.
Features a convenient, multipurpose shelf for storing tools and attachments.
Technical information
Indicated for dust classes - L
Power - W 1x1200
Tool Power, max W - 1x2400
Vacuum Level mm/H²O - 2000
Weight Kg - 10.5
Noise dB(A) - 70
Bag Capacity Kg - 5
Container Volume L - 30
Flow capacity m3/h - 165
Connectable tools - 1
Electrical outlets for tools - 1
Automatic filter cleaning - Yes
