Cabineo 12

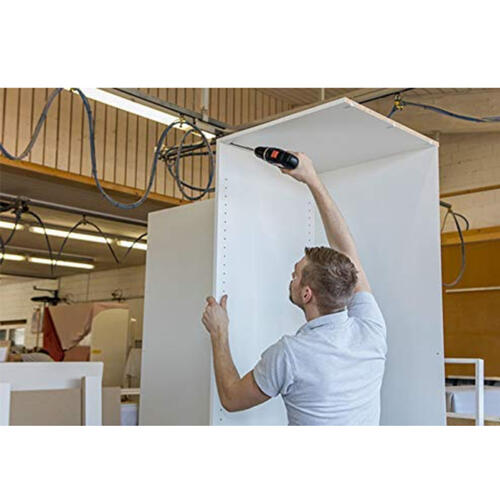

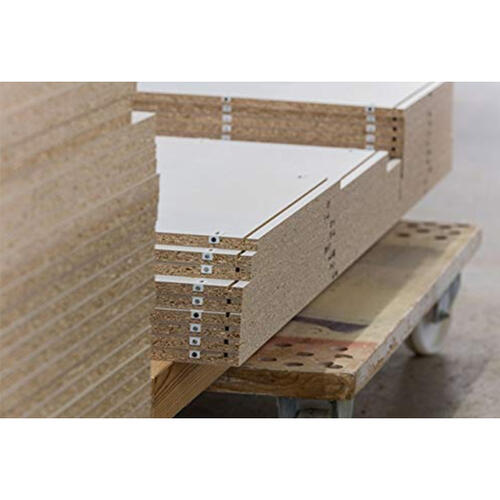

The Cabineo is a one-piece cabinet unit fitting and is installed into a drilled or routed shape. No edge drilling is necessary - the machining happens solely in the surface. Due to this, Cabineo can be used with all kinds of CNC machines, including very simple 3 axis and nesting machines. The Cabineo offers considerable advantages in the whole process, including production, transport and installation. Installing the fitting into the workpieces and stacking them during the production process is possible without any protruding parts, which could damage the finished surfaces. This eliminates the packing of bags with fittings which would need to be delivered to the job site for installation. Because the elements are already factory-installed, the person assembling doesn't need to handle loose fittings supplied in a bag during installation.

{{product.options[0].name}}

{{packitem.quantity}} x {{packitem.item.name}} {{packitem.options[0].name}}

{{packitem.quantity}} x

Quantity

- +

Stock Notification

Name

Email Address

Name

Message Delivery Address

SKU #

Summary
Reviews

CABINEO 12 500PCE CORNER JOINT LAMELLO

For all CNC machines
Surface machining without addtional drill holes in the edge for wooden dowels. Therefore the maching is possible on simple 3 axis CNC machines also.
Drilling or cutting
The workpiece can be machined either using a drill or a cutter.

Reduced to the essentials
The one-part connector features high clamping force and does not require any additional alignment elements such as wood dowels.

Size (mm): 33.8 x 16.5 x 10.8 mm
Cutter: ø 12 mm or smaller
Drill: ø 5 mm and ø 15 mm
Material connector: Fibreglass reinforced plastic
Installation tolerance: Longitudinal ± 0.1 mm
Tensile strength: ~ 900 N ≈ 90 kg
